Ürün Ayrıntıları
Menşe yeri: Guangdong, Çin
Marka adı: Longyuan
Sertifika: FCC CE RoHS ISO9001
Model numarası: LY-8816
Ödeme ve Gönderim Koşulları
Min sipariş miktarı: 10 adet
Fiyat: negotiable
Ambalaj bilgileri: Carton:100PCS/CTN or Customized packaging according to customer requirements. Karton: 100
Teslim süresi: 5-15 iş günü
Ödeme koşulları: L/C, D/A, D/P, T/T, Western Union
Yetenek temini: 10000 adet/gün
Ürün adı: |
Manyetik Solenoid Kilit |
Yüzey işleme: |
galvanizli |
Başvuru: |
Soyunma Kapıları, Dolaplar |
Kilit Gövde boyutu: |
80,6 mm x 55,6 mm x 13 mm |
Kancalı ağırlık: |
210G |
Malzeme: |
Paslanmaz çelik |
Tuz püskürtme testi: |
≥48 saat |
Çalışma sıcaklığı: |
-20℃~+60℃ |
ambalajlama: |
Standart İhracat Karton |
Garanti: |
1 yıl |
Ürün adı: |
Manyetik Solenoid Kilit |
Yüzey işleme: |
galvanizli |
Başvuru: |
Soyunma Kapıları, Dolaplar |
Kilit Gövde boyutu: |
80,6 mm x 55,6 mm x 13 mm |
Kancalı ağırlık: |
210G |
Malzeme: |
Paslanmaz çelik |
Tuz püskürtme testi: |
≥48 saat |
Çalışma sıcaklığı: |
-20℃~+60℃ |
ambalajlama: |
Standart İhracat Karton |
Garanti: |
1 yıl |

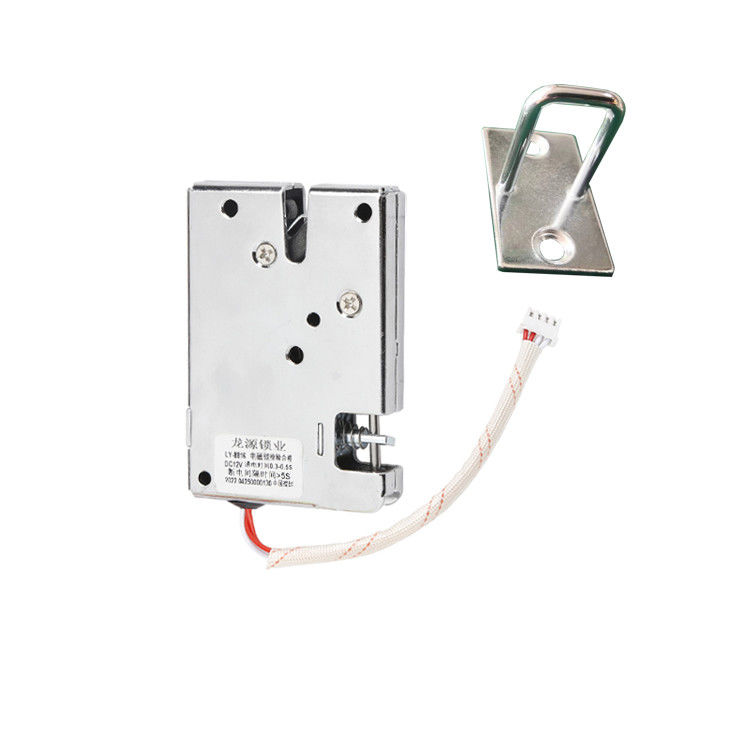

CE RoHS Electrical Magnetic Solenoid Lock Intelligent Entertainment Center Lockers
Product features
1. The electronic locker lock is activated by a high-strength engine gear, and has a fully automatic unlocking.
2. There are various styles of electronic cabinet lock unlock way: Phone +Fingerprint + Password + Card+face recognition
3. The electronic cabinet lock is installed firmly, and the installation process is simple and flexible.
Principle
Electromagnetic lock is based on 51 series single-chip microcomputer (AT89051) and equipped with corresponding hardware circuit to complete password setting, storage, identification and display, drive electromagnetic actuator and detect its driving current value, receive alarm signal sent by sensor, send data and other functions. The single-chip microcomputer receives the typed code and compares it with the password stored in the EEPROM. If the password is correct, the electromagnetic actuator will be driven to unlock; if the password is incorrect, the operator will be allowed to re-enter the password for up to three times; If it is not correct, the single-chip microcomputer will send an alarm to the intelligent monitor through the communication line.
Customer Service
1. Your inquiry related to our products or price will be replied in 24hrs.
2. Buyer can dispatch technician to our factory for free training before delivery.
3. For essential parts of electromagnetic lock failure, we will send to our quality manager and engineer head to check and help trouble shooting, also provide online technical support for the whole life.
Failure analysis
How to judge equipment failure?
1. Equipment Power-off
Unlock method: Unlock by emergency pull rod method
2. Terminal head dropped of Electromagnetic lock
3. No response to emergency unlocking
Unlock method: Cut off or saw off emergency lever with pliers, and toggle stopper powder metallurgy unlocking
4. U-shaped part hook and torsion spring were broken
Unlock method: Unlock the emergency lever and pry the door
Specification
|
Product name
|
Electromagnetic lock
|
|
Place of Origin
|
Shenzhen China
|
|
Brand Name
|
Longyuan Lock
|
|
Model Number
|
LY-8816
|
|
Lock Body size
|
80.6mmx55.6mmx13mm
|
|
Weight with hook
|
210g
|
|
Weight with hook
|
SPCC,Powder Metallurgy
|
|
Surface treatment
|
Galvanized
|
|
Cable outer leakage length
|
170mm(accept customized)
|
|
Rated Voltage
|
DC12V(accept customized)
|
|
Min Unlock Voltage
|
8V
|
|
Current
|
2.5A
|
|
Max Power
|
30W
|
|
Manner of working
|
Open after power on
|
|
Reaction time
|
0.3sec
|
|
Blackout interval
|
>5sec
|
|
Salt spray testing
|
≥48hours
|
|
Working temperature
|
-40℃ to +80℃
|
|
Working humidity
|
95%
|
|
Working life
|
more than 100,000 times
|
|
Sample
|
Available
|
|
OEM
|
Accepted
|
|
Signal detection/ switch(open/close)
|
Open/ Close Feedback for option
|
|
Install way
|
Screw
|
|
Unlock way
|
power on and emergency lever
|
|
Certification
|
CE,ISO9001, RoHS
|
|
Warranty
|
1year
|
Packing and delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.Standard package: Carton box package, 50pcs/layer, 100pcs/carton.
Customized package also available.
